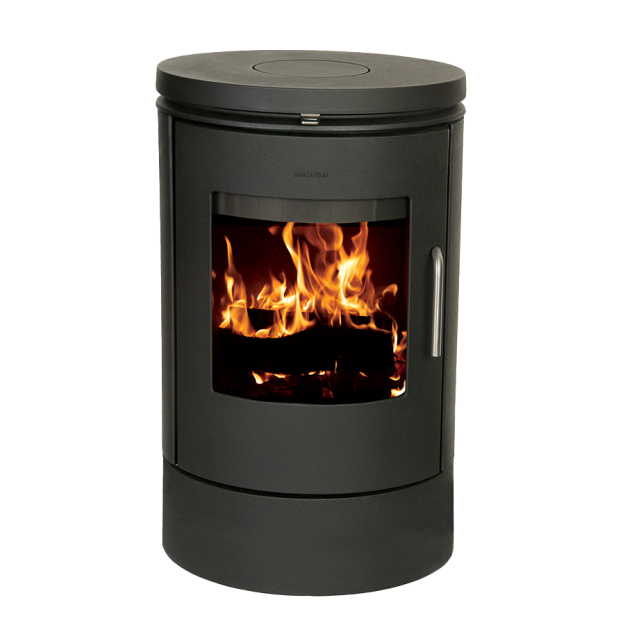

Morsø 6140 B Convection Wood Stove with Low Base
Morsø
(No reviews yet)
Write a Review
Morsø
Morsø 6140 B Convection Wood Stove with Low Base
6140-B Overview
The Morsø 6140 B brings the 6100-series contemporary aesthetic to its lowest profile configuration, mounting the firebox on a short, integrated base for installations where the homeowner wants the firebox closer to seating height. The 6100 series is Morsø's most architectural wood stove platform, defined by clean lines, hidden hinges, oval profile, and a large viewing window.
Maximum heat output is 19,067 BTU/hr and the 6140 B heats up to 1,000 sq. ft. The 6140 B accepts an outside air supply (6140/6143 OAK kit sold separately for stoves manufactured after 9/10) and is mobile home approved. Standard equipment includes the convection jacket, airwash system, ash tray, pre-heated combustion air, and tertiary air supply. Flue exit is 6-inch top or rear. Note: outside air kit fitment depends on stove manufacture date.
Key Features
- Contemporary 6100-series convection wood stove
- Low integrated base configuration
- EPA approved
- Maximum output: 19,067 BTU/hr
- Heats up to 1,000 sq. ft.
- Firebox: 13 in. x 10 in. (0.505 cu. ft.)
- 11-inch maximum log length
- Convection jacket distributes heat evenly
- Outside air supply available (OAK sold separately, post-9/10 manufacture)
- Mobile home approved
- Pre-heated combustion air with tertiary air supply
- Hidden hinges and clean lines
Specifications
| Product Type | Convection Wood Stove |
| Series | 6100 Series |
| Model | 6140-B |
| Maximum Heat Output | 19,067 BTU/hr |
| Maximum Heating Area | 1,000 sq. ft. |
| Firebox Dimensions | 13 in. x 10 in. |
| Firebox Volume | 0.505 cu. ft. |
| Maximum Log Length | 11 in. |
| Stove Height | 29 3/4 in. |
| Stove Width | 17 3/4 in. |
| Stove Depth | 15 1/4 in. |
| Flue Outlet | 6 in. top or rear |
| Outside Air Supply | Available (OAK sold separately, post-9/10 manufacture) |
| Mobile Home Approved | Yes |
| Heating Form | Convection |
| Shipping Weight | 258 lbs |
| Fuel | Wood |
| Approvals | EPA |
| Warranty | 10 years castings, 5 years sheet iron |
Warranty
Morsø Jernstøberi A/S provides a 10-year warranty on cast iron components against material and manufacturing defects, and a 5-year warranty on sheet iron stove components. Wear parts (vermiculite bricks, springs, baffles, base/front/riddling grates, glass) carry a 6-month warranty. Steel chimneys are warranted for 2 years. Morsø supplies spare parts for up to 10 years after a stove type is discontinued. The warranty period begins from the date of sale and does not cover damage from incorrect installation, overheating, firing with the wrong fuel, draft problems, or chimney faults. Refer to the owner's manual for complete terms.
Downloads
10-Year Castings, 5-Year Sheet Iron (Morsø Jernstøberi A/S)
