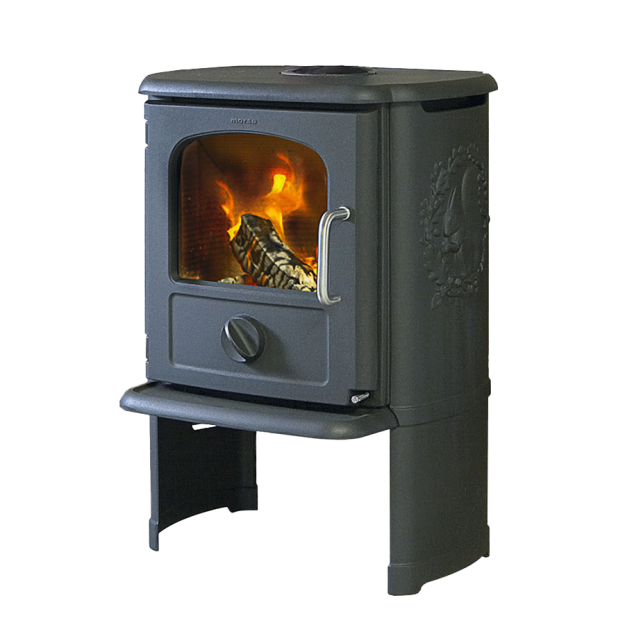

Morsø 3142 B Convection Wood Stove
Morsø
(No reviews yet)
Write a Review
Morsø
Morsø 3142 B Convection Wood Stove
3142-B Overview
The Morsø 3142 B is the convection version of the 3100-series platform, adding a convection jacket to the same cast iron core as the 3112 B for more even heat distribution throughout the room. Maximum heat output is 28,000 BTU/hr and the 3142 B heats up to 1,200 sq. ft., a step up from the 3112 B thanks to the convection jacket's improved warm-air circulation.
Like the 3112 B, the 3142 B accepts an outside air supply (sold separately as the 7110/3100 OAK kit) and is mobile home approved. The convection jacket draws cool room air in at the base, heats it as it passes around the firebox, and discharges it at the top, eliminating cold spots in larger rooms. Standard equipment includes a riddling grate, ash pan, airwash system, pre-heated combustion air, and tertiary air supply.
Key Features
- 3100-series convection wood stove
- EPA approved
- Maximum output: 28,000 BTU/hr
- Heats up to 1,200 sq. ft.
- Firebox: 13 1/4 in. x 12 1/2 in. (0.85 cu. ft.)
- 12-inch maximum log length
- Convection jacket distributes heat evenly
- Outside air supply available (OAK sold separately)
- Mobile home approved
- Pre-heated combustion air with tertiary air supply
- Pre-heated secondary air supply
- Morsø airwash system keeps glass clean
Specifications
| Product Type | Convection Wood Stove |
| Series | 3100 Series |
| Model | 3142-B |
| Maximum Heat Output | 28,000 BTU/hr |
| Maximum Heating Area | 1,200 sq. ft. |
| Firebox Dimensions | 13 1/4 in. x 12 1/2 in. |
| Firebox Volume | 0.85 cu. ft. |
| Maximum Log Length | 12 in. |
| Stove Height | 29 1/8 in. |
| Stove Width | 20 1/4 in. |
| Stove Depth | 17 3/4 in. |
| Flue Outlet | 6 in. top or rear |
| Outside Air Supply | Available (OAK sold separately) |
| Mobile Home Approved | Yes |
| Heating Form | Convection |
| Shipping Weight | 279 lbs |
| Fuel | Wood, briquettes, approved smokeless fuel |
| Approvals | EPA |
| Warranty | 10 years castings, 5 years sheet iron |
Warranty
Morsø Jernstøberi A/S provides a 10-year warranty on cast iron components against material and manufacturing defects, and a 5-year warranty on sheet iron stove components. Wear parts (vermiculite bricks, springs, baffles, base/front/riddling grates, glass) carry a 6-month warranty. Steel chimneys are warranted for 2 years. Morsø supplies spare parts for up to 10 years after a stove type is discontinued. The warranty period begins from the date of sale and does not cover damage from incorrect installation, overheating, firing with the wrong fuel, draft problems, or chimney faults. Refer to the owner's manual for complete terms.
Downloads
10-Year Castings, 5-Year Sheet Iron (Morsø Jernstøberi A/S)
