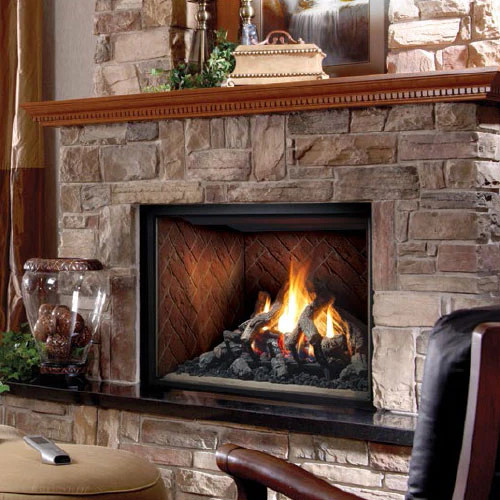

Marquis Solace 47 Direct Vent Gas Fireplace

Solace 47 Overview

The Marquis Solace 47 (HBZDV4736) is the largest Solace zero-clearance direct vent gas fireplace, with a 39 1/2" wide by 26 3/8" tall tempered glass viewing area and a dual-burner system delivering 40,000 BTU on natural gas (36,000 BTU on propane). Built in Canada by R-Co. Inc. / Marquis by Kingsman, the Solace 47 is a traditional-style louvered fireplace with refractory brick interior, factory-installed safety screen barrier, and a sloped 4/7" top flue.

Framing dimensions are 47 1/6" wide by 43 1/16" tall by 19 7/16" deep. The Solace 47 ships with a hi/lo wall switch, refractory brick interior, and an integrated safety screen. Choose between standard millivolt or IPI PF1 valve systems, traditional Fiber-Split Oak logs (LOGF36) or contemporary rocks (MQROCK2 with MQRSP1 platform), and your front face: black grill (HB47GBL) or the Designer Clean View circulating kit (HB47CVCK) for a louver-free presentation. The fireplace is approved for 4/7" Kingsman flex, 4 x 6 5/8" hard pipe, or PVH58 power vent.

Key Features

• 47 inch zero-clearance direct vent gas fireplace
• 40,000 BTU NG / 36,000 BTU LP max input (dual burner)
• 53.79% efficiency NG (millivolt) / 54.90% efficiency NG (IPI)
• Viewing area 39 1/2" W x 26 3/8" H
• Sloped 4/7" top flue
• Choice of standard millivolt or IPI PF1 valve systems
• Hi/lo flame adjustment via wall switch
• Refractory brick liners (multiple upgrade options)
• Integrated safety screen barrier
• Optional Designer Clean View Circulating Kit removes louvers for picture-frame face
• Approved for PVH58 power vent for long horizontal runs
• Compatible with Z36FK fan kit (heat-activated, variable speed)
• Decorative-rated (Z21.50)
• Mobile home approved (after first sale, USA)
• Made in Canada by R-Co. Inc. / Marquis by Kingsman

Valve System Selection

The Solace is available with two valve systems:

• Standard Millivolt: Proven thermopile-powered valve. Operates during power outages without electricity. Compatible with millivolt remote controls (GTRC $357.50) and millivolt thermostats (Z2MT $130.90, Z80PT $204.60).
• IPI PF1 (Proflame 1): Intermittent pilot ignition. No standing pilot flame between uses. Compatible with PF1 remotes (EGTRC $421.30, EGTMRCN/P $572) and thermostatic / modulating control. Battery backup available (WMBH $251.90).

Conversion kits are available if you need to switch fuel post-install (around $105.60 millivolt, $124.30 IPI). Both valve types accept the same firebox, liners, and accessories.

Specifications

Warranty

The Marquis Solace is backed by the Marquis Limited Lifetime Warranty. Coverage applies to the original purchaser at the original installation address and is non-transferable. Specific coverage periods by component:

• Lifetime: Heat exchanger and combustion chamber (firebox)
• 10 years: Burner assembly
• 5 years: Glass against thermal breakage (excludes impact damage)
• 2 years: Electrical components (millivolt valve, IPI module, remote receiver, blower, wiring harnesses)
• 1 year: Refractory and porcelain liners, log sets, glass media, gaskets, paint, and other consumable items

Coverage begins on the date of original installation by a qualified gas fitter. For new construction, the warranty period starts at the earlier of (a) the first occupancy of the home or (b) six months after the dealer purchase date. Warranty service is provided by Marquis (R-Co. Inc., Winnipeg, Manitoba) through authorized dealers. Damage from improper installation, abrasive cleaners, substitute glass, modifications, water damage, or operation outside the rated environment is not covered. The warranty does not cover labor for diagnosis, removal, or reinstallation of the appliance after the first year. See the owner's manual for complete terms and the warranty registration card.

Separately-Orderable Accessories

The following accessories are not included in the configurations above but can be ordered alongside the fireplace and shipped together. Contact Fireplace Insider for pricing on accessories not listed in the configurator.

• Log Sets: LOGF36 Fiber Split Oak ($650). The fireplace requires either a log set OR a rock set for proper operation.
• Rock Set: MQROCK2 Contemporary Natural Rock Set ($356) requires the Rock Support Platform (MQRSP1, $314). Rocks must not contact burner tubes directly.
• Glass Media (Decorative Accent, Max 5 lbs on burner): Bronze (MQG5C), Black (MQG5B), Cobalt Blue (MQG5A), White (MQG5W), ZIRCON Glacier Ice (MQG5ZG). Available in Bronze, Black, Cobalt Blue, White, and ZIRCON Glacier Ice at $124.30 per 5 lb bag. Used as decorative ember bed accent on top of logs or rocks.
• Decorative Add-ons: MQEMBER Ember Chunks ($130.90), MQSTONE 80-piece Decorative Stones ($412.50), MQSTONE10 10-piece set ($83.60), RBCB1 Cannonballs assorted ($454.30).
• Fan Kit (Z36FK, $421): Heat-activated fan kit with variable-speed wall-mounted control. Recommended when the fireplace is the primary supplemental heat source.
• Replacement Safety Screen (HB47CSS, $346): Replacement front safety screen barrier. The unit ships with one screen included.
• Conversion Kits: Field-conversion kits available if you need to switch fuel after installation: millivolt $105.60 each direction, IPI $124.30 each direction.
• Remote Controls: Compatible remotes vary by valve system. Millivolt: GTRC ($357.50), GTMRCN/P thermostat-modulating ($506), GTFRCN/P thermostat-modulating-fan ($804.10). IPI PF1: EGTRC ($421.30), EGTMRCN/P ($572), EGTFRCN/P ($844.80). Contact Fireplace Insider for the right remote pairing.
• Venting Components: 4/7" Kingsman flex pipe kits, 4 x 6 5/8" hard pipe, horizontal/vertical termination kits, attic insulation shields, firestop spacers, and the PVH58/PVH58FM power vent system are all available. Contact Fireplace Insider for a venting quote based on your installation route.
