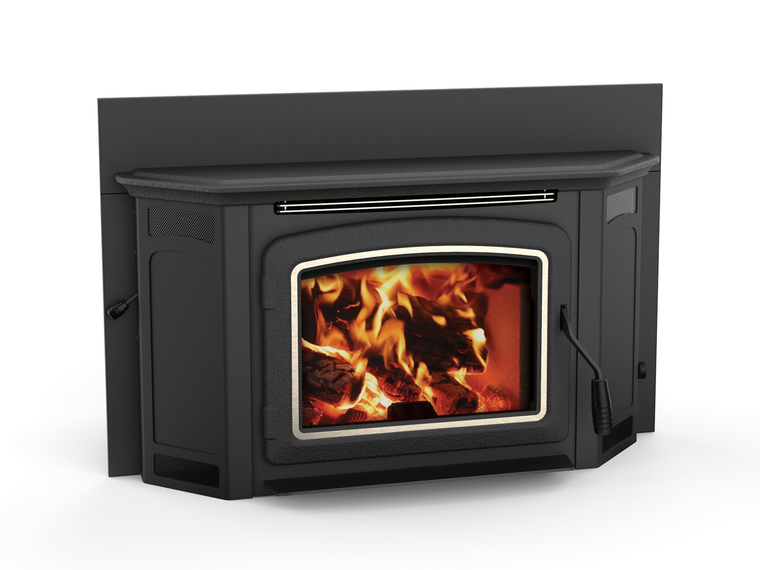

Country Stoves Carrollton 230 GL Wood Insert
Country Stoves
$4,285.00 - $4,648.00
(No reviews yet)
Write a Review
Country Stoves
Country Stoves Carrollton 230 GL Wood Insert
ML230GL Overview
The Carrollton 230 GL is the mid-size wood-burning fireplace insert in the Country Stoves lineup, sitting between the Scottsdale C160 entry insert and the larger Carrollton 300 flagship. It uses Country Stoves Thermal Fin Technology (TFT) cast-iron heat exchanger, the same technology found in the Georgetown 230 freestanding stove, to deliver 32 percent more heat-transfer surface than a standard insert design. The Carrollton 230 has a 2.3 cubic foot firebox, accepts logs up to 18 inches, outputs 76,000 BTU per hour, and heats 1,200 to 2,200 square feet. It fits into existing masonry openings as small as 25 wide by 21.5 tall by 15.5 deep.
Standard equipment includes a factory-installed 150 CFM variable-speed blower (the C160 and C210 inserts make this optional). Required separately purchased accessories are a warming top (steel or cast-iron) and a surround panel kit sized to the existing fireplace opening. Five surround panel sizes are offered to fit common openings: 26.5 by 41, 26.5 by 48, 31 by 41, 31 by 48, and a 33 by 48 trimmable. Optional accessories include decorative door trim in Nickel or Brushed Nickel, a Brushed Nickel louver (cast-iron top only), and a raised hearth cover plate. Confirm fireplace dimensions before ordering.
Key Features
- EPA-certified clean-burning combustion
- Thermal Fin Technology cast-iron heat exchanger adds 32 percent more surface area
- 2.3 cubic foot firebox accepts logs up to 18 inches
- 76,000 BTU per hour, heats 1,200 to 2,200 square feet
- Factory-installed 150 CFM variable-speed blower included
- Air-boost timer simplifies startup and reload
- Ceramic glass with integrated air wash for a clean view
- High-density firebrick retains heat after the burn cycle
- Choice of steel or cast-iron warming top required
- Five surround panel sizes for common openings
- Optional decorative door trim and louvers
- Limited lifetime warranty
Specifications
| Model | ML230GL |
|---|---|
| Type | Wood-Burning Fireplace Insert |
| Firebox Volume | 2.3 cubic feet |
| Max Log Length | 18 inches |
| BTU Output | 76,000 BTU/hr |
| Heating Range | 1,200 to 2,200 sq ft |
| Flue Outlet | 6 inches |
| Min Fireplace Width | 25 inches |
| Min Fireplace Height | 21-1/2 inches |
| Min Fireplace Depth | 15-1/2 inches |
| Blower | Factory-installed 150 CFM variable speed |
| EPA Status | EPA Certified |
| Agency Listing | UL 1428-2010, ULC S628-1993 |
| Warranty | Limited Lifetime |
Warranty
Limited lifetime warranty from Country Stoves (Innovative Hearth Products) covering the firebox, heat exchanger, and welded steel components against defects in materials and workmanship for the original purchaser at the original installation address. Other components such as gaskets, glass, paint, plated parts, electrical components, and firebrick are covered for shorter durations as outlined in the manufacturer warranty document. Coverage begins on the date of original retail purchase. Damage from improper installation, abuse, alteration, or normal wear is excluded. Warranty is non-transferable.
