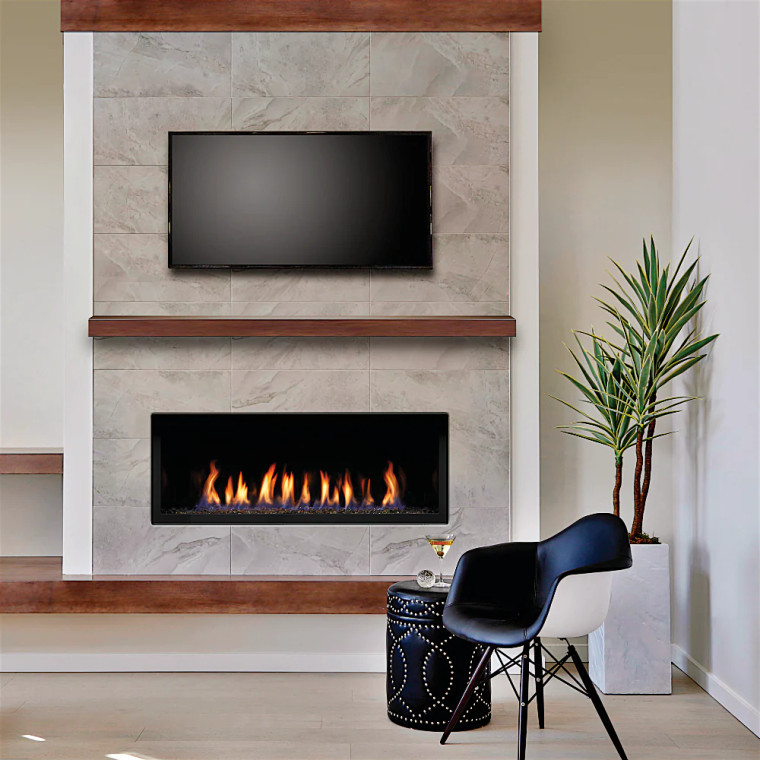

Kingsman ZCVRB47 47" Zero Clearance Direct Vent Linear Gas Fireplace

ZCVRB47 Overview

The Kingsman ZCVRB47 is a 47" zero-clearance direct vent linear gas fireplace in the ZCVRB Serene series. This is the contemporary linear flagship of Kingsman's direct vent line, built in Canada and engineered for new construction or major renovation projects where a wide, ribbon-flame presentation is the focus of the room. The ZCVRB47 ships with the linear burner, decorative bronze ember glass, an InvisiMesh-style safety screen barrier, and the SIT Hi/Low millivolt valve as standard. Both the millivolt and IPI ignition systems will operate during a power failure.

At 46 5/8" W x 38 5/8" H x 17 3/4" D, the ZCVRB47 is the entry size in the ZCVRB linear family and installs into a 4"/7" coaxial flex or hard pipe vent. The chase may be vented for cool-touch walls and reduced mantel clearances when the vent shields are removed. Minimum vented-chase enclosure height is 70". Mobile home, bedroom, and bed-sitting room approved.

Key Features

• 47" zero-clearance linear direct vent gas fireplace
• 24,500 BTU Natural Gas / 24,500 BTU Propane (max input)
• Efficiency: 55.26% (Millivolt) / 57.31% (IPI PF1)
• Tempered glass front
• Viewing area: 41 5/8" W x 15 7/8" H
• Venting: 4"/7" Flex or 4" x 6 5/8" Hard Pipe
• Hi/Low SIT valve (millivolt) or Proflame 1 IPI ignition options
• Both ignition systems operate during a power failure
• Bronze decorative ember glass included
• InvisiMesh-style safety screen barrier included
• Mobile home, bedroom, and bed-sitting room approved
• Optional cool-touch wall (vented chase) installation
• Optional Black or Stainless Steel surround trim kit
• Optional porcelain reflective liner, fan kit, and remote controls

Specifications

Warranty

Kingsman Limited Lifetime Warranty. The heat exchanger, combustion chamber, and burner are warranted against defects in materials or workmanship for as long as the unit is owned by the original purchaser at the original installation site. Coverage applies only when the unit is installed inside the continental United States, Alaska, Hawaii, or Canada, in accordance with the printed installation instructions and applicable building codes.

During the first year after installation, Kingsman provides replacement parts and labor for any component found defective in materials or workmanship, with prior approval and through an authorized Kingsman dealer. Accent light bulbs, gasketing, and paint are excluded from the one-year coverage. Beyond year one, the Limited Lifetime coverage is parts only; labor, freight, and handling are not covered.

The warranty does not cover damage from accident, abuse, negligence, misuse, riot, fire, flood, Acts of God, corrosive atmospheres (chlorine, fluorine, etc.), unauthorized alteration or repair, improper installation or component matching, or failure to perform proper maintenance. The warranty is non-transferable and applies only to the original purchaser at the original installation site.
