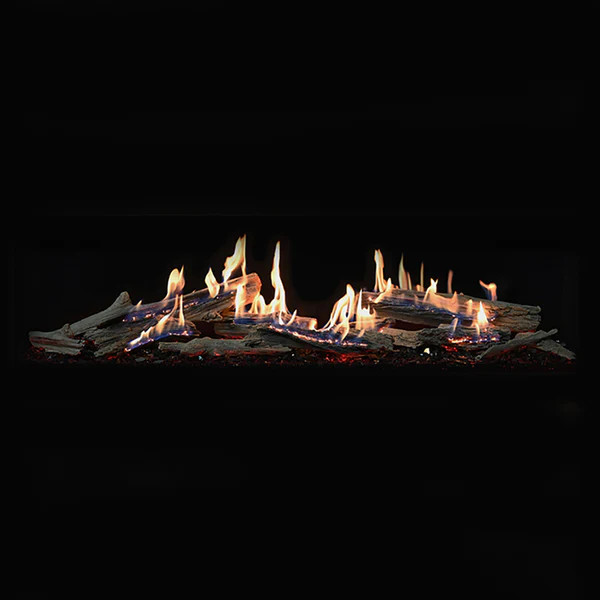

Grand Canyon LDBT72L 72" Bedrock Traditional Linear Drop-In Vented Gas Burner with GlowFire Logs

LDBT72L Overview

The Grand Canyon LDBT72L is the largest size in the Bedrock Traditional Drop-in family and one of the longest open-face traditional gas burners on the market. At 6 feet wide with the GlowFire log integration, it produces the visual presence of a wood-burning fireplace while delivering 95,000 BTU of natural gas heat output and the convenience of remote-controlled ignition with five flame intensity levels.

What separates the Bedrock Traditional from a conventional gas log set is that Grand Canyon integrated the burner tubes inside the ceramic refractory logs. The result is more efficient fuel use with a fuller flame, less flame impingement on the logs (which reduces sooting), and more radiant heat back into the room from the log mass itself. The LDBT72L ships with the deck and base assembly, SIT Proflame II controls with handheld remote, addressable RGB LED ember lighting with its own remote and customizable WiFi app, rating plate, installation manual, flex line, and fittings. Western Driftwood GlowFire logs and finish media (lava rock or fire glass) are sold separately or selectable above. Fireplace Insider ships the LDBT72L nationwide. Installation must be performed by a licensed gas fitter into a fireplace approved for solid fuel burning, with a working flue.

Key Features

• 72-inch open-face Traditional drop-in linear burner with GlowFire ceramic refractory log integration
• Natural Gas: 95,000 BTU/hr maximum, 60,000 BTU/hr minimum (5 flame levels)
• Liquid Propane: 75,000 BTU/hr maximum, 40,000 BTU/hr minimum (5 flame levels)
• SIT Proflame II valve and IPI ignition with handheld remote
• Addressable RGB ember lighting (WS2811 LED, 5V) with IR remote and customizable WiFi app
• 120V AC primary, 4xAA battery backup
• Vented configuration only, designed for solid-fuel-rated fireplaces
• Approved for indoor use and outdoor covered patio installations (per outdoor requirements in manual)
• Minimum firebox dimensions: 72 inch width x 15 inch depth x 20 inch height
• Includes deck, base, burner, SIT Proflame II controls, LED light system with remote and WiFi app, rating plate, install manual, flex line, fittings
• Made in the USA by Grand Canyon Gas Logs (Phoenix, AZ)
• Western Driftwood GlowFire logs sold separately or above as an option

Specifications

Warranty

The Bedrock Series carries a multi-component warranty issued by Grand Canyon Gas Logs to the original purchaser:

• Burner: Lifetime warranty against manufacturer defects when installed indoors by a professional installer; one-year warranty if installed outdoors. Black paint color, sheen, and discoloration from use are not covered.
• Ceramic refractory logs (sold separately): Lifetime warranty when installed indoors; two to five-year warranty when installed outdoors depending on log type. Color fading from normal use is not covered.
• SIT Proflame II valve, pilot assembly, electronic ignition, and LED system: Two-year warranty against defects from date of purchase when installed indoors; one-year when installed outdoors. Batteries are not covered. Warranty applies only when used with Grand Canyon Gas Logs burners and logs.

All warranties are limited to the original purchaser and require documentation of purchase or installation date. Coverage does not include breakage from excessive handling once installed and fired, improper installation, or weather damage on indoor-rated components. Prior to submitting a warranty claim, the Grand Canyon Gas Logs Technical Service Department must be contacted to diagnose and validate the faulty or defective part. An approved warranty claim qualifies for a $65 labor credit (single occurrence, single trip) applied to the dealer/distributor account.

Downloads

• LDBT72L Specification Sheet (PDF)
• Bedrock Traditional Burner Installation and Operation Manual (PDF)
• Bedrock Series Brochure (PDF)
• Grand Canyon Gas Logs 2026 Price Guide (PDF)
