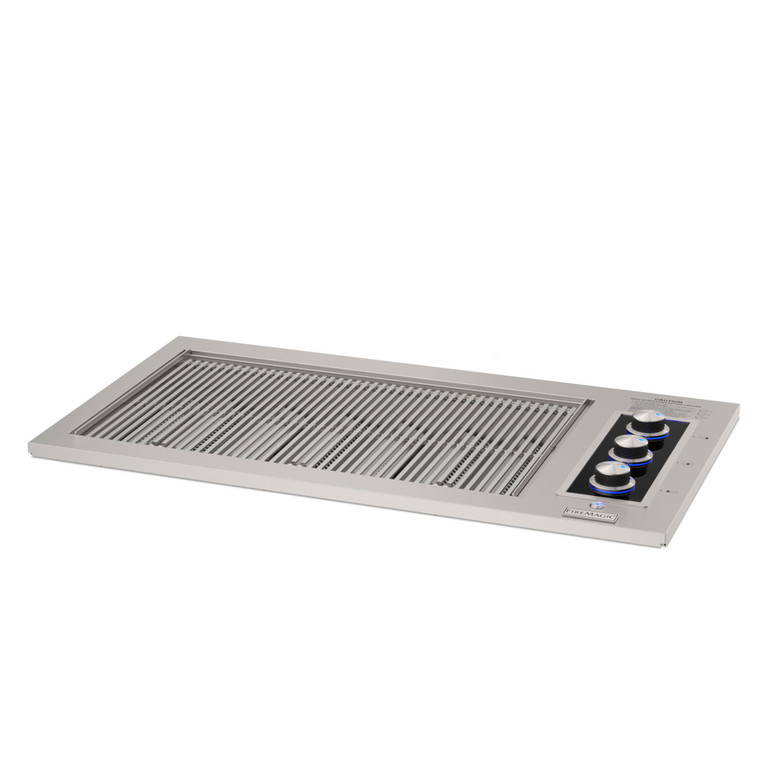

Fire Magic Echelon E540d 30-Inch Drop-In Flat-Top Gas Grill (Hoodless)
Fire Magic
$5,497.00
(No reviews yet)
Write a Review
Fire Magic
Fire Magic Echelon E540d 30-Inch Drop-In Flat-Top Gas Grill (Hoodless)
E540d-0T0N Overview
The Fire Magic E540d-0T0N is the hoodless flat-top variant of the Echelon Diamond E540d drop-in gas grill. The grill head and burner system are identical to the hooded E540d-6TAN model (540 sq. in. cooking area, 54,000 BTU), but the hood and warming rack are removed for a modern open-cooking aesthetic that keeps you facing your guests during meal prep.
The E540d-0T0N is best suited to outdoor kitchens designed for entertaining where the cook stays engaged with guests rather than peering into a closed hood. Note that hoodless designs do not retain heat for indirect cooking, smoking, or rotisserie work, so this configuration is intended for direct-grilling only. The black-glass-accented control panel and electric spark ignition match the hooded version. The grill is configurable at order only by fuel type: natural gas or propane, both at the same MSRP.
Key Features
- Patented Diamond Sear cooking grids for fast, even heat transfer and superior searing.
- 304 stainless steel tube burners delivering 54,000 BTU primary heat output.
- Open hoodless flat-top design that keeps the cook engaged with guests during meal prep.
- Black-glass-accented control panel matching the hooded E540d.
- Electric spark ignition system; requires 110V/120V supply.
- 304 stainless steel construction throughout.
- Convertible regulator with orifices for natural gas or propane (specify at order); pre-assembled stainless steel gas flex connector included.
Specifications
| Product Type | Drop-In Outdoor Gas Grill |
|---|---|
| Series | Echelon Diamond |
| Model | E540d-0T0N |
| Cooking Area, Primary | 30" x 18" (540 sq. in.) |
| Cooking Area, Warming Rack | Not applicable (hoodless flat-top design) |
| Framing / Cutout | Drop-in cutout: refer to Fire Magic spec sheet for the E540d-0T0N flat-top configuration (different cutout depth than the hooded -6TAN) |
| Primary Burner BTU | 54,000 BTU/hr |
| Fuel Availability | Natural Gas or Liquid Propane (factory-built per order; not field-convertible) |
| Ignition | Electric spark (110V/120V) |
| Thermometer | Not included on hoodless flat-top configuration |
| Burners | 304 stainless steel tube burners |
| Construction | 304 stainless steel |
| Shipping Weight | 145 lbs |
| Carton Dimensions | 44"L x 30"W x 14"H (estimate; confirm with carrier at order) |
| Listings | CSA / ANSI Z21.58 certified |
| Country of Origin | Made in the USA |
| Warranty | See Warranty section below |
Warranty
Lifetime warranty on cast stainless steel burners, Diamond Sear cooking grids, and stainless steel housings. 15-year warranty on brass valves, inner liners, manifold assemblies, porcelain housings, and backburner assemblies (excluding ignition parts). 5-year warranty on flavor grids and infrared burners. 3-year warranty on all other Fire Magic grill components (excluding ignition and electronic parts). 1-year warranty on ignition systems (excluding batteries), electronic components including lights and thermometers, and grill accessories. Labor coverage included for two (2) years up to $120. Warranty applies to the original purchaser with proof of purchase and to single family residential use only.
Downloads
Lifetime / 5-Year / 3-Year / 1-Year Tiered Warranty (R.H. Peterson Co.)
