Real Fyre G23 Vent-Free Fyre Spheres Burner

Real Fyre G23 Fyre Spheres Burner Overview

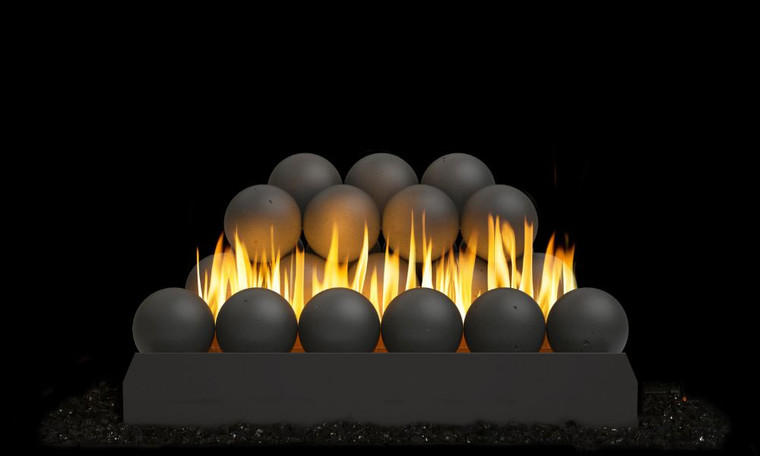

The Real Fyre G23 is RH Peterson's contemporary spheres-only burner, engineered specifically for the Fyre Spheres media collection. Unlike the glass-and-gems G21, the G23 burner features pegged sphere mounts that hold each 4-inch sphere in position over the burner ports, creating tall flames that wrap around the spheres for a sculptural fire presentation. Available in 18-inch and 24-inch sizes, the G23 produces 28,000 BTU at 18-inch and 37,000 BTU at 24-inch (NG and LP equal).

For 2026, RH Peterson introduces the new Nero Marquina sphere finish - a deep black surface with white veining inspired by the Spanish marble of the same name - joining the existing Carrera Marble (white with gray veining), Epic Black (matte black), and Gray Stone (textured concrete-look) options. Two control levels are offered: ON/OFF remote (-12) and the electronic-pilot variable flame remote (-01V) for full ambiance control. The G23 ships with a removable front panel, connector kit, and ODS-equipped pilot system; black glass media for the firebox floor is included with the burner.

Key Features

• ANSI Z21.11.2 certified vent-free spheres burner
• Pegged sphere mounts engineered specifically for 4-inch Fyre Spheres
• 28,000 BTU on 18-inch or 37,000 BTU on 24-inch (NG and LP equal)
• Four sphere finish options including new-for-2026 Nero Marquina
• 16 spheres for 18-inch installs, 22 spheres for 24-inch
• Two control options: ON/OFF or electronic variable flame
• Removable front panel for service access
• Black glass media for firebox floor included
• ODS pilot system for vent-free safety compliance
• Field conversion not permitted

Specifications

Warranty

RH Peterson backs Real Fyre vent-free burner systems with the following limited warranty terms:

• Vent-free refractory ceramic gas logs: lifetime warranty, original purchaser, indoor use only.
• Vent-free fiber-ceramic blended gas logs: 5 years, indoor use.
• Indoor gas log burners and stainless steel burners (excluding controls): 10 years.
• Outdoor stainless steel burners (excluding controls): 5 years.
• Glass, gems, and nuggets media: 10 years.
• SPK-26 control: 3 years.
• APK-17 valve: 2 years.
• All other valves, pilots, and controls (excluding batteries): 1 year.

Coverage is provided by Robert H. Peterson Co. and applies from the date of original retail purchase. Warranty service requires proof of purchase from an authorized Real Fyre dealer. Damage from misuse, improper installation, modification, or use of non-Real Fyre parts voids the warranty.

Downloads

• G23 Fyre Spheres Vent-Free Burner Owner's Manual (PDF)
