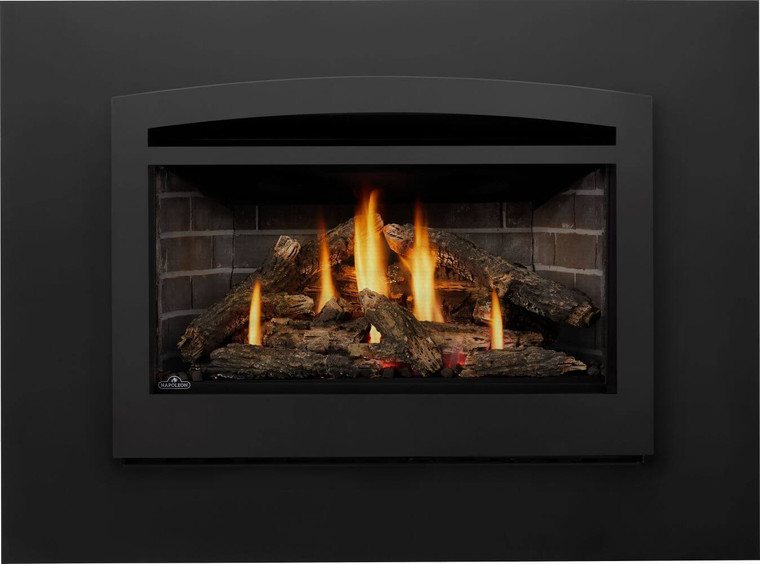

Napoleon Rosedale RD3N Hybrid Direct Vent Gas Insert

RD3N Overview

The Napoleon Rosedale (RD3N) is the newer hybrid-capable gas insert in Napoleon's remodel-grade lineup. With a 7-day millivolt ignition system, it operates without household power on the gas valve and can be paired with the optional standard blower and (forthcoming) hybrid electric heater for combined gas+electric operation that extends seasonality and reduces fuel use during shoulder months. Maximum output is 30,000 BTU on gas alone, with up to a 20% effective heat boost when combined with the hybrid electric mode.

This insert ships with a heat-radiating ceramic glass viewing area, standard safety screen, and Proflame II remote. A log media kit (Oak or Birch), a backerplate, and a faceplate are required for a complete installation; configure them below. An adjustable riser box is available as a separate accessory for taller fireplace openings.

Key Features

• Up to 30,000 BTU on gas, with up to 20% boost when combined with hybrid electric
• 7-day millivolt ignition (operates during power outages)
• Heat-radiating ceramic glass
• Standard safety screen included
• Proflame II remote control included
• Optional standard blower kit (sold separately)
• Choice of Oak or Birch log set (required, configure below)
• Wide range of media kits, brick panels and porcelain panels available
• Co-axial / co-linear venting with adjustable plate
• Adjustable riser box accessory available for taller openings

Specifications

Warranty

This Napoleon insert is covered by the President's Limited Lifetime Warranty. Coverage applies to the original purchaser at the original installation address and is subject to the terms set out in Napoleon's warranty document. Key points:

• Lifetime: aluminized steel firebox / heat exchanger / combustion chamber, stainless steel burners, gas valves, glass against thermal breakage
• 10 years (parts and labor in years 1-2; parts only in years 3-10): electronic components and igniter assemblies
• 1 year: blowers, accessories, paint, plating, gaskets, batteries, remote controls, light bulbs, decorative media (logs, embers, glass beads, brick panels)
• Excluded: damage from improper installation, modifications, abuse, accident, use of non-Napoleon replacement parts, or installation outside Napoleon's specifications
• Warranty is non-transferable and begins at date of purchase

Refer to the official Napoleon warranty document for the full terms, exclusions, and claims process.

Downloads

• Rosedale Series product page (manual and spec sheet)
