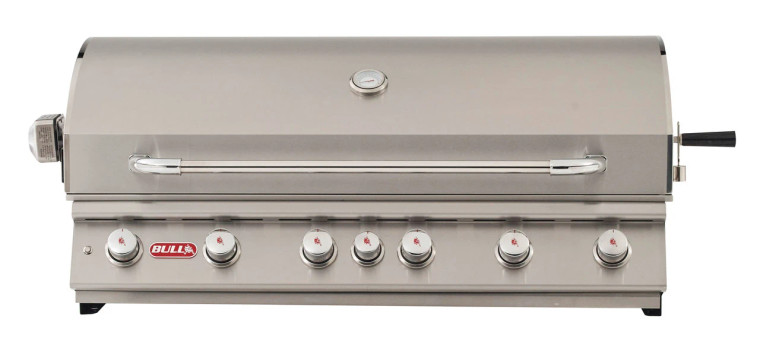

Bull 46" Diablo Drop-In Grill Head, 6 Burner + Infrared / 105,000 BTU (NG)
Bull
$4,899.00
(No reviews yet)
Write a Review
Bull
Bull 46" Diablo Drop-In Grill Head, 6 Burner + Infrared / 105,000 BTU (NG)
BG-DIABLO-46 Overview
The Bull 46" Diablo is the largest and most robust drop-in head in the Bull lineup, built for serious outdoor chefs and large outdoor kitchens where 38 inches is not enough firepower. Six cast stainless steel burners and a 15,000 BTU infrared back burner produce 105,000 BTU of total cooking power across an 866 square inch main cooking surface, with a 269 square inch warming rack stacked above. Construction is 304 stainless steel, with a heavy-duty welded dual-lined hood and solid stainless cooking grates.
The Diablo is offered as Natural Gas only in the 2026 stocked program (MPN 62649); LP is not a stocked configuration in this size. Standard equipment matches the Brahma, factory rotisserie motor with chrome spit, twin hood lighting, Piezo ignition, ReliaBull flame tamers, heavy-duty thermometer, sized up for the wider firebox. Pair with the 7-Burner Diablo Cart Bottom for cart installations. Verify NG supply pressure and BTU capacity on the gas line before specifying.
Key Features
- 105,000 BTU total output from six cast stainless burners and one infrared back burner
- 15,000 BTU infrared back burner for searing and rotisserie cooking
- 304 stainless steel construction with welded dual-lined hood
- 866 sq. in. main cooking surface, 269 sq. in. warming rack
- Solid stainless steel cooking grates
- Stainless steel rotisserie motor with chrome spit (factory installed)
- Twin halogen hood lighting
- Heavy-duty hood-mounted thermometer
- Natural Gas only (LP not available in stocked program)
- Designed for built-in installation or pairing with the Diablo cart bottom
Specifications
| Total BTU | 105,000 |
| Main Burners | 6 cast stainless steel |
| Back Burner | 15,000 BTU infrared |
| Cooking Surface | 866 sq. in. |
| Warming Rack | 269 sq. in. |
| Construction | 304 stainless steel |
| Ignition | Piezo |
| Lighting | Twin halogen hood lights |
| Rotisserie | Stainless steel motor with chrome spit (included) |
| Fuel | Natural Gas only |
| Width | 46" |
| Shipping Weight | 235 lbs |
Warranty
Lifetime warranty on the firebox and cooking grates. Five-year warranty on cast stainless main burners and the infrared back burner. Two-year warranty on igniters, valves, and other components. One-year warranty on stainless steel finish, paint, and surface defects. Warranty applies to the original purchaser and is not transferable. Coverage begins on the date of purchase, with proof of purchase required.
Downloads
Lifetime warranty on the firebox, cooking grates, and welded or cast stainless steel main burners. Five-year warranty on the infrared back burner. Two-year warranty on igniters, valves, and other components. One-year warranty on stainless steel finish, paint, and surface defects. Warranty applies to the original purchaser and is not transferable. Coverage begins on the date of purchase, with proof of purchase required.
