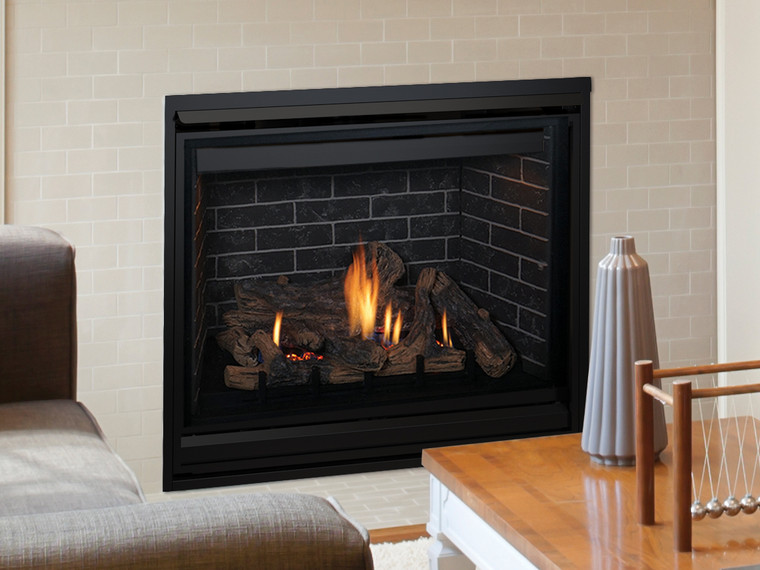

Superior DRT3545 DRT3500 45" Traditional Direct Vent Gas Fireplace

DRT3545 Overview

The Superior DRT3545 is the fully-featured top tier of the mid-size DRT family. Where the DRT3000 sells features as upgrades, the DRT3500 builds them in: ceramic glass for optimum heat transfer, six-setting interior LED illumination, a factory-installed six-speed blower, and a full-function Proflame remote (IPI/CPI, thermostat, flame height, blower, lighting). At 45 inches, this is the most polished mid-size traditional Superior offers.

The DRT3500 is Electronic IPI/CPI ignition only, with seamless battery backup. Both Natural Gas and Liquid Propane factory configurations are available at the same MSRP. A facade is required (Vista Frame Black baseline, plus Reflection and Craftsman upgrades), and a liner is required as well: choose from Blackstone, Greystone, or Blended Brown stacked ceramic, or step up to the Black Reflective Porcelain. The combination top/rear flue and standard 4.5/7.5 Secure Vent system give installers full vent flexibility.

Key Features

• 45-inch traditional direct vent gas fireplace, Pro Series fully featured
• 35,000 BTU Natural Gas / 30,000 BTU Liquid Propane
• Mid-size 18-1/2 inch framing depth
• Combination top or rear flue configuration
• Electronic IPI/CPI ignition with battery backup (no Millivolt option)
• Ceramic glass for optimum heat transfer (upgrade over tempered)
• Factory-installed six-speed blower included
• Six-setting interior LED illumination
• Full-function Proflame remote control included
• Required facade and required liner at order time
• Listed by PFS Corporation, ANSI Z21.88, CSA 2.33, PFS report F13-094
• 20-year limited warranty (Innovative Hearth Products)

Specifications

Warranty

The Superior DRT Series carries Innovative Hearth Products' 20-year limited warranty on the firebox and body, covering parts and labor when installed by a listed IHP supplier. Glass is covered for 5 years against thermal breakage. Electrical components, fans, switches, and accessories carry a 1-year warranty. Paint, plating, and finish are excluded. Vent components, trim components, and parts not manufactured by IHP are warranted only as supplied by their respective manufacturers. Coverage begins at the date of installation and is non-transferable. Damage from abuse, accident, improper installation, normal wear, or unauthorized modification is not covered. Proof of purchase required.

Downloads

• Brochure
• Smart Sheet
• Installation Manual
• Specification Sheet
