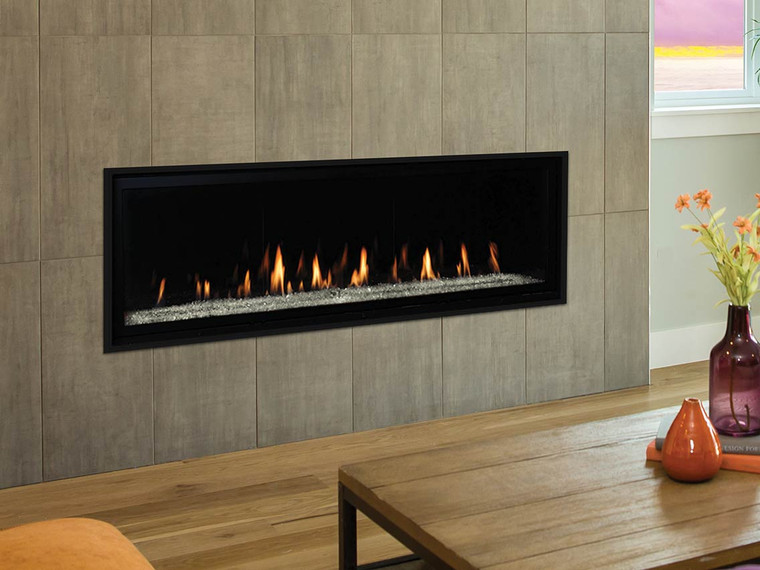

Superior DRL6072 DRL6000 Signature Series 72" Linear Direct Vent Gas Fireplace

DRL6072 Overview

The Superior DRL6000 Series is the Signature tier and the top of Superior's contemporary linear lineup. The 72-inch DRL6072 is the same firebox size as the DRL4000 sibling but ships fully loaded: electronic IPI/CPI ignition with seamless battery backup, platinum crushed glass, integrated floor lighting, expansive ceramic glass, a factory-installed variable-speed blower, a full-function multi-zone remote (IPI/CPI, thermostat, flame height, blower, lighting), a black porcelain liner interior (vs the painted interior on the DRL4000), and the standard protective screen barrier. Six flame settings give up to a 30 percent turndown for precise heat control.

The DRL6000 also adds optional Power Vent compatibility (PVK-PF2-SV4.5), which is not offered on the DRL4000, so down-and-out installations or runs requiring power venting are only possible at this tier. Like the DRL4000, the 72-inch unit converts to see-through. Framing measures 86-1/4" wide by 48-1/2" tall by 19-1/2" deep. NG only from the factory; LP installs use a field conversion kit.

Key Features

• 72-inch linear direct-vent gas fireplace, Signature Series with ceramic glass
• Indoor see-through conversion kit available to allow viewing from two living spaces
• Electronic IPI/CPI ignition with seamless battery backup
• Six flame settings with up to 30 percent turndown for precise heat control
• Mood-enhancing integrated floor lighting (standard, not optional)
• Factory-installed variable-speed blower with six speed settings (standard)
• Multi-function remote included (IPI/CPI, thermostat, flame height, blower, lighting)
• Black porcelain liner interior standard (vs painted interior on DRL4000)
• Platinum crushed glass media standard; alternate glass colors available
• Ceramic glass with standard protective screen barrier
• Natural gas factory (45,000-31,500 BTU); LP install via field conversion kit (43,000-32,250 BTU)
• Uses 6" / 9" 6DVL direct-vent components
• Optional Power Vent system available for down-and-out installations (not offered on DRL4000)
• Optional HeatFlo convection kit redirects heat above heat-sensitive wall hangings
• 20-year limited warranty

Specifications

Warranty

The Superior DRL Series gas fireplaces carry the Innovative Hearth Products (IHP) 20-Year Limited Warranty. Coverage breaks down by component: the firebox, burner, logs, refractories, and ceramic glass are covered for 20 years; gaskets, glass tempered, and trim are covered for 5 years; ignition modules, valves, blowers, remotes, and other electronic components are covered for 2 years. Coverage begins on the date of installation, or for new construction, the earlier of first occupancy or six months after dealer sale. Warranty must commence no later than 24 months after IHP shipped the product, regardless of when it was installed.

The warranty is non-transferable and extends to the original owner only. The product must be purchased from a listed IHP dealer or distributor and installed in the United States or Canada in compliance with the printed installation manual, applicable building codes, and good trade practices. Excluded from coverage: damage from improper installation, modification, abuse, or use of non-IHP replacement parts; damage from chimney or venting components not approved for the appliance; consumables and items subject to normal wear (gaskets, glass damage, paint touch-up); incidental or consequential damages such as utility bills or property damage. Original proof of purchase is required for any warranty claim. IHP's sole obligation is repair, replacement, or refund at IHP's discretion. See the IHP warranty document and installation manual for complete terms.

Downloads

• DRL6000 Series Brochure (PDF)
• DRL6072 Smart Sheet (PDF)
• DRL6072 Installation and Operation Manual (PDF)
• DRL6072 Specification Sheet (PDF)
