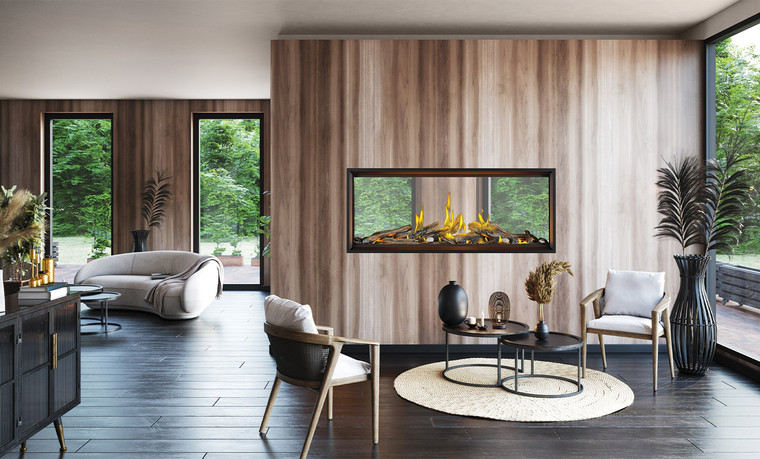

Napoleon TLV62ST Tall Linear Vector 62 See-Through Direct Vent Gas Fireplace

TLV62ST Overview

The Napoleon TLV62ST Tall Linear Vector 62 is the premium step-up from the standard Vector series and a see-through contemporary direct vent gas fireplace with an expansive 41-inch tall viewing area. At 62 inches wide and producing up to 48,000 BTU, the Tall Linear Vector delivers greater visual impact through taller flames without consuming additional fuel, thanks to the split-flow burner architecture. Standard equipment includes heat-radiating ceramic glass, the black premium safety barrier, multi-color LED lighting and accent lighting, battery back-up control, the ProFlame II and eFire controller with remote, and MIRRO-FLAME porcelain reflective radiant panels.

The TLV62ST see-through configuration extends the dramatic 41-inch tall viewing area into two rooms simultaneously and is most often specified between great rooms and primary suites or for indoor-outdoor pavilion installs. The firestop and vent shield, stainless steel flex connector, and easy-access air control come standard. Optional heat management through LHAD, DHC, DHCP, and DHM makes it possible to install heat-sensitive electronics or art directly above the unit. Propane installs require either rigid venting or the optional power vent kit. The Tall Linear Vector requires media (mineral rocks, woodland kit, glass embers, wrought iron globes, or one of three high-definition log sets) before installation.

Fireplace Insider ships the TLV62ST nationwide. Professional installation by a licensed gas fitter is required, and your installer should review Napoleon's installation manual and all local and national gas and building codes before framing or commissioning.

Key Features

• 62-inch tall linear direct vent gas fireplace
• Up to 48,000 BTU on natural gas, with optional LP conversion kit
• 41-inch tall viewing area for greater visual impact than standard linear
• Split-flow burner architecture (taller flames without added fuel consumption)
• Tube-style burner with flame and heat adjustment
• Multi-color LED ember bed lighting and accent lighting
• MIRRO-FLAME porcelain reflective radiant panels (installed)
• Heat-radiating ceramic glass
• Black premium safety barrier (included)
• ProFlame II and eFire controller with remote
• Battery back-up control system
• Stainless steel flex connector
• Easy access air control
• Firestop and vent shield
• Optional heat management: LHAD, DHC, DHCP, DHM
• Propane installs require rigid or power venting
• President's Limited Lifetime Warranty

Specifications

Warranty

Backed by Napoleon's President's Limited Lifetime Warranty. Coverage applies to the original purchaser when the appliance is installed by a qualified installer in accordance with the installation manual and all local and national building and gas codes.

Coverage breakdown by component, per Napoleon's published warranty schedule: Lifetime on the firebox, heat exchanger, stainless steel burners, and stainless steel tubes. Ten years on most cast iron, ceramic, and porcelain components. Five years on certain electrical components, gold and nickel plated parts, valves, switches, and remote controls. One year parts replacement free of charge during the first year of limited warranty. Light bulbs, fuses, glass, paint, gaskets, plated soft metal trim, and door springs are not covered. Labor for warranty repair is not covered.

Warranty coverage begins on the date of original installation and is non-transferable. Damage from misuse, lack of maintenance, accident, alterations, abuse, or neglect is excluded. Construction varies by model, so warranty applies only to the components included with your specific appliance. Wolf Steel Ltd. reserves the right to inspect any product or part prior to honoring a warranty claim. A photocopy of the original invoice is required for replacement part claims.
