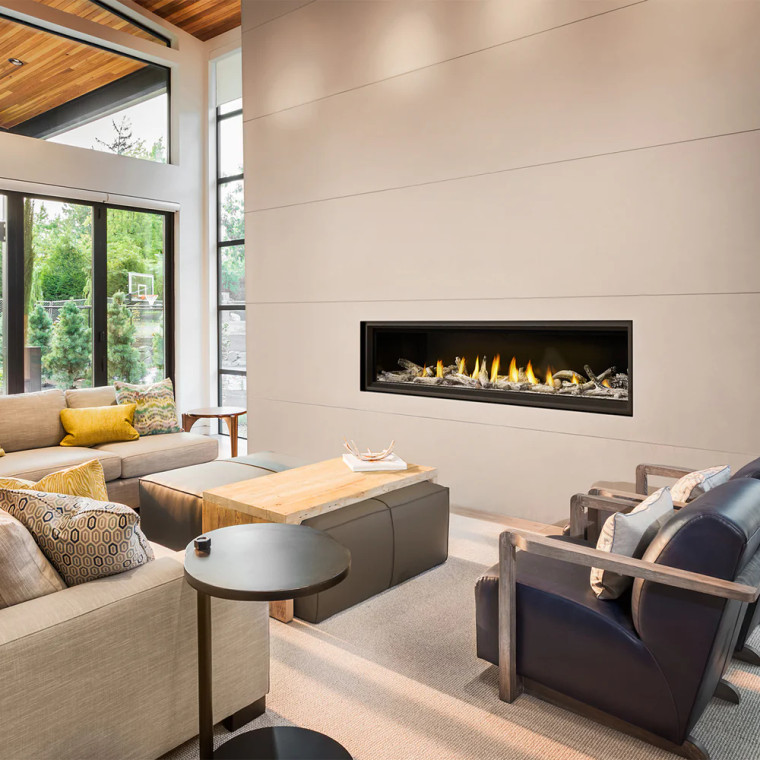

Napoleon LVX74NX-1 Luxuria 74 Single-Sided Linear Direct Vent Gas Fireplace

LVX74NX-1 Overview

The Napoleon Luxuria 74 single-sided is the flagship of the Napoleon linear series. The Luxuria pairs a triple-pane Glass Guard system that stays safe to touch with Napoleon's patented Dynamic Heat Control, allowing TVs, art, and combustible finishes to be installed flush to the opening without a safety screen. The 74-inch viewing window measures 78 1/8" wide by 18 5/8" tall, and the firebox accepts a wide range of media including high definition log sets, Wrought Iron Globes, Mineral Rocks, Woodland kits, and topaz glass embers or beads.

The single-sided configuration is the most flexible installation option in the family, suiting flush wall installations, partial-pier mounts, and corner builds. The Luxuria includes ProFlame II with eFire app control over Wi-Fi, the multi-color LED ember bed, MIRRO-FLAME porcelain reflective panels, a battery backup control, and a stainless steel flex connector. Output is up to 50,000 BTU on natural gas, with field-installable LP conversion available. Fireplace Insider ships the LVX74NX-1 nationwide; professional installation by a licensed gas fitter is required.

Key Features

• 74 inch linear direct vent gas fireplace, single-sided
• Up to 50,000 BTU on natural gas, field LP conversion available
• Patented Dynamic Heat Control included (redirects heat away from above-fireplace finishes)
• Triple-pane Glass Guard system, safe to touch, no safety screen required
• ProFlame II ignition with eFire Wi-Fi controller and remote
• Multi-color LED ember bed lights with top accent lighting
• Divinity flame pattern with full flame and heat adjustment
• MIRRO-FLAME porcelain reflective radiant panels included
• Battery back-up control system for use during power outages
• Stainless steel flex connector and firestop / vent shield included
• Optional Indoor/Outdoor Kit for exterior wall installations
• Compatible with Dynamic Heat Control Plus blower kit and Dynamic Linear Trim

Specifications

Warranty

Napoleon backs this fireplace with the President's Limited Lifetime Warranty. The combustion chamber, heat exchanger, and stainless steel components carry a lifetime warranty against manufacturing defects for the original purchaser at the original installation site. Burners and aluminized steel components carry a 10-year limited warranty. Glass, gaskets, paint, plating, ceramic logs, electronic and electrical components, ignition modules, valves, switches, blowers, and remote control systems are covered for 1 year. Coverage is non-transferable and begins on the date of purchase by the original owner. The warranty does not cover damage from improper installation, unauthorized service, abuse, alteration, or use of fuel or components not specified by Napoleon. Labor is not included beyond the first year. Refer to the Napoleon owner's manual for the complete warranty terms.

Downloads

• Luxuria 74 Specification Sheet (PDF)
• Luxuria Series Installation Manual (PDF)
• Vector and Luxuria Owner's Manual (PDF)
• Luxuria Series Brochure (PDF)
