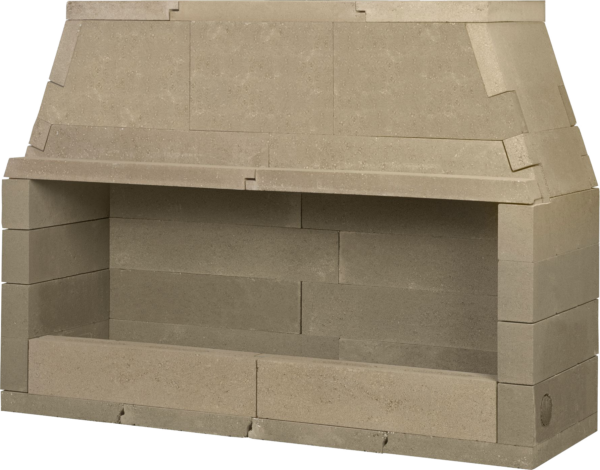

Mason-Lite LMFP120 120" Linear B-Vent Masonry Firebox Kit (with Burner Trough)

LMFP120 Overview

The Mason-Lite LMFP120 is a 120 inch contemporary linear B-vent masonry firebox kit with the integrated burner trough. The trough is sized to conceal either the Mason-Lite Opalescence linear burner with IC-controlled LED lighting (display with or without flame), or the Golden Blount Alpine burner for a contemporary spark-to-pilot alternative. Burner is sold separately. Finished opening width is 120" with a 22-1/2" opening height, vented through dual 12" b-vent.

BTU output ranges up to 200,000 depending on the burner installed. The LMFP120 ships with high-temperature dry mortar; an angle iron / T-bar lintel is required and sourced locally per the install manual. Listed for indoor and outdoor installation, multi-story builds, and combustible-floor applications with appropriate non-combustible base. RADCO compliant for Class A and B-vent applications and ANSI Z21 compliant on B-vent. Optional glass doors tested and listed.

Key Features

• Integrated burner trough for Opalescence LED or Golden Blount Alpine linear burner (sold separately)
• Vents through dual 12" b-vent chimney
• BTU rating up to 200,000
• RADCO compliant (Class A and B-Vent), ANSI Z21 compliant on B-Vent
• Optional glass doors tested and listed
• Use MFPST-AK-M see-through air kit for outside combustion air
• Lightweight pre-cast modular concrete construction
• Approved for indoor and outdoor installation
• Approved for multi-story and combustible-floor installations
• Finished opening: 120" W x 22-1/2" H x 21-1/2" D
• Footprint: 133" x 28"
• Limited Lifetime Warranty (Masonry Fireplace Industries)
• 100% USA sourced and manufactured

Specifications

Warranty

Masonry Fireplace Industries (MFI) provides a Limited Lifetime Warranty on Mason-Lite fireplaces. The warranty covers defects in materials of the modular concrete firebox that adversely affect fireplace performance, for the lifetime of the product from the date of purchase. Coverage applies only to fireplaces installed in the continental United States, Alaska, and Canada.

Specific terms include:

• Coverage is limited to the modular concrete firebox manufactured by MFI. Hardware, foundation, venting, ducts, chimney systems, outside air ducts, and accessories are not covered, even when supplied by MFI.
• Drafting, smoking, and sooting are excluded because they are influenced by site conditions outside the manufacturer's control.
• Glass is warranted against thermal breakage only and only on MFI-manufactured glass-front models. Safety glass or safety screen must be in place when the fireplace is in use.
• The warranty is void when the fireplace is not installed per the published installation instructions, or when there is evidence of misuse, abuse, improper installation, accident, or lack of regular maintenance.
• Damage in transit is not covered.
• Labor costs and indirect costs for component replacement are not covered. MFI may, at its option, repair, replace, or refund a defective covered component.
• Claims must be submitted to MFI in writing by registered mail within 30 days of discovering the defect, including the date of purchase, model and serial number, place of purchase, address of installation, homeowner contact information, and a description of the defect.

Downloads

• LMFP120 Spec Sheet (PDF)
• Mason-Lite Linear Brochure
• LMFP Linear B-Vent Manual (English)
• LMFP Linear B-Vent Manual (French)
• Mason-Lite Product Catalog (32 pages)
• Wood Burning Clearance & Mantel Guide
• Opalescence LED Linear Burner Manual (For Trough Units)
• Alpine Burner Manual (For Trough Units)
• Linear Burner Riser Block Installation
• Mason-Lite Burner Brochure
