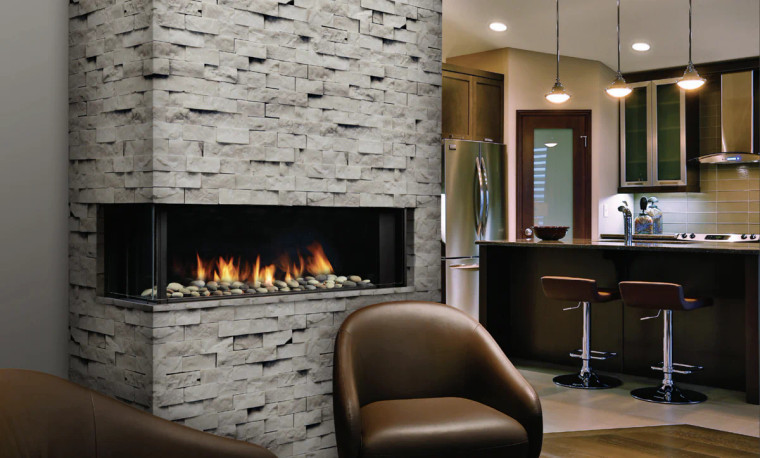

Marquis Enclave 72 Corner Linear Direct Vent Gas Fireplace

MQVLBG72-CORNER Overview

The Marquis Enclave 72" Corner configuration uses the same firebox as the Bay Peninsula model, with the VLBGCK Corner Conversion Kit installed at the factory to close off one large side. The result: glass on the front and one short side, designed to anchor a corner installation while preserving the wraparound flame view that defines the Enclave platform. BTU output runs up to 50,000 on natural gas (50,000 on propane) through Proflame 2 IPI with modulating control, LED accent lighting, and an invisible glass safety barrier.

Framing dimensions are 86 1/2" wide by 36 5/16" tall by 18 7/8" deep. Choose left or right corner orientation at install (the closed side is the long open side of a bay unit). Chase venting is required top and bottom (200 sq. in. minimum above, 102 sq. in. below on this size). The MQVLBG72-CORNER ships with the VLBGCK Corner Conversion Kit included in the price (includes firebox cover, heat shield, inner panel, front cover, and hardware). Vents using 5/8" Kingsman flex, hard pipe, or PVH58 power vent.

Key Features

• 72 inch linear direct vent gas fireplace, corner configuration
• 50,000 BTU max input on natural gas, 50,000 BTU on propane
• Two-sided glass viewing (front + one short side)
• Modulating burner with 34,000 BTU minimum (NG)
• 60.32% fireplace efficiency (P.4.1-15)
• Viewing area 78 5/8" W x 15 1/4" H ceramic glass
• 5/8" coaxial direct vent (Kingsman flex or hard pipe)
• Proflame 2 IPI (intermittent pilot ignition) with modulating control
• LED accent lighting, non-dimmable
• Invisible glass safety barrier (Invisi-Mesh)
• Bedroom and bed/sitting room approved (heater rated)
• Mobile home approved (after first sale, USA)
• Approved for PVH58 power vent for long horizontal runs
• WiFi smart thermostat compatible (RCP2WIFI dongle, sold separately)
• Hand-held Proflame 2 remote control included
• Made in Canada by R-Co. Inc. / Marquis by Kingsman
• VLBGCK Corner Conversion Kit included

Specifications

Warranty

The Marquis Enclave is backed by the Marquis Limited Lifetime Warranty. Coverage applies to the original purchaser at the original installation address and is non-transferable. Specific coverage periods by component:

• Lifetime: Heat exchanger and combustion chamber (firebox)
• 10 years: Burner assembly
• 5 years: Glass against thermal breakage (excludes impact damage)
• 2 years: Electrical components (Proflame 2 valve, IPI module, remote receiver, blower, LED lights, wiring harnesses)
• 1 year: Refractory liners, log sets, glass media, gaskets, paint, and other consumable items

Coverage begins on the date of original installation by a qualified gas fitter. For new construction, the warranty period starts at the earlier of (a) the first occupancy of the home or (b) six months after the dealer purchase date. Warranty service is provided by Marquis (R-Co. Inc., Winnipeg, Manitoba) through authorized dealers. Damage from improper installation, abrasive cleaners, substitute glass, modifications, water damage, or operation outside the rated environment is not covered. The warranty does not cover labor for diagnosis, removal, or reinstallation of the appliance after the first year. See the owner's manual for complete terms and the warranty registration card.

Separately-Orderable Accessories

The following accessories are not included in the configurations above but can be ordered alongside the fireplace and shipped together. Contact Fireplace Insider for pricing on accessories not listed in the configurator.

• Tile Lip Kit (72VL-TLK, $143): Five-piece kit with screws for finishing tile or stone material directly to the fireplace face. Order with the unit; install before applying finishing materials.
• Adjustable Vented Platform (VL72AVP, $767): Variable height install platform (approximately 15" to 27") that combines framing and required bottom-chase venting in a single component. Recommended for retrofit and platform installations.
• WiFi Smart Thermostat Module (RCP2WIFI, $228): Plug-in dongle that lets you control flame, fan, and thermostat from a smartphone via the Proflame WiFi app. Compatible with all Enclave Proflame 2 models.
• Decorative Log Sets and Media: MQRBD3 5-Piece Driftwood Log Set ($561), MQRBRW 5-Piece Birchwood Log Set ($542), MQLOAK1 5-Piece Linear Oak Log Set ($561), MQROCK2 Contemporary Rock Set Natural ($356), MQSTONE 80-piece Decorative Stones ($412), MQEMBER Ember Chunks ($131), RBCB1 Cannonball Set assorted ($454). Decorative pieces sit on top of the standard glass media.
• Refractory Liner Upgrades for See-Through and Bay Configurations: Additional end-panel liners are configurable on bay/corner/see-through models above.
• Venting Components: 5/8" Kingsman flex pipe kits (5', 8', 20'), horizontal and vertical termination kits, attic insulation shields, firestop spacers, and the PVH58/PVH58FM power vent system are all available. Contact Fireplace Insider for a venting quote based on your installation route.

Downloads

• Enclave 48/60/72 Brochure (Marquis)
• MQVLBG72-CORNER Installation Manual (Marquis)
